High-Quality Piston for TVS110: The Ideal Engine and Motorcycle Part
Product Overview
In the realm of engine parts and motorcycle parts, the Piston:TVS110 holds a crucial position. As an essential component for motorcycles, especially those with TVS110 engines, and even applicable in some tricycle parts, this piston is designed to meet the high - performance demands of modern engines.
The piston is the heart of an engine's combustion process. In a TVS110 engine, it plays a vital role in converting the heat energy from fuel combustion into mechanical energy, which ultimately powers the vehicle. Its seamless operation is what enables the motorcycle to start smoothly, accelerate efficiently, and maintain a consistent performance during rides. Whether you are using a TVS110 motorcycle for daily commuting in the city or for long - distance adventures on the open road, the Piston:TVS110 is a key element that ensures the engine functions optimally.
CYL DIA (Cylinder Diameter): 53.5
The CYL DIA, which is 53.5 in this case, refers to the inner diameter of the cylinder that the piston operates within. This dimension is of utmost importance as it directly affects the engine's displacement and power output. A larger cylinder diameter generally allows for a greater volume of air - fuel mixture to be combusted during each stroke. In the TVS110 engine, the 53.5 - sized cylinder diameter is optimized to provide a balance between fuel efficiency and power. It ensures that an appropriate amount of fuel is burned in each cycle, which is crucial for the motorcycle's smooth acceleration and consistent performance. If the cylinder diameter were too small, the engine might lack power, while an overly large diameter could lead to increased fuel consumption and reduced efficiency.
TOTAL HIGH (Total Height): 42
The total height of the piston, which is 42, plays a significant role in the engine's operation. It determines the piston's overall size and how it fits within the cylinder. A proper total height ensures that the piston can move smoothly through the entire stroke without hitting the cylinder head or the bottom of the cylinder. This height also affects the compression ratio of the engine. If the piston is too short, it may not compress the air - fuel mixture effectively, resulting in reduced power and poor combustion efficiency. On the other hand, a piston that is too tall can cause mechanical issues such as interference with other engine components. In the Piston:TVS110, the 42 - unit total height is precisely engineered to meet the specific requirements of the TVS110 engine, providing optimal performance and reliability.
COMP DIST (Compression Distance): 21
The COMP DIST of 21 represents the distance that the piston travels during the compression stroke. This distance is a key factor in determining the engine's compression ratio. A higher compression ratio, which can be achieved by an appropriate compression distance, leads to more efficient combustion. When the piston compresses the air - fuel mixture to a smaller volume, the combustion process releases more energy, resulting in increased power output. In the TVS110 engine, the 21 - unit compression distance is designed to optimize the compression ratio, enhancing the engine's performance in terms of both power and fuel economy. It allows for a more complete combustion of the fuel, reducing emissions and maximizing the engine's efficiency during operation.
The piston ring with dimensions 0.8*0.8*1.5 is an essential part of the piston assembly. The piston ring's main functions are to seal the combustion chamber, prevent gas leakage, and control oil consumption. The cross - sectional dimensions of the ring (0.8*0.8) determine its flexibility and ability to conform to the cylinder wall. A properly sized ring can effectively seal the gaps between the piston and the cylinder, ensuring that the high - pressure gases generated during combustion do not escape into the crankcase. The 1.5 dimension might refer to the ring's width, which also affects its performance. A wider ring can provide better sealing, but it also increases friction. In the Piston:TVS110, the carefully designed piston ring dimensions strike a balance between sealing performance and minimizing friction, contributing to the engine's overall efficiency and durability.
PIN DIA (Piston Pin Diameter): 14
The PIN DIA of 14 refers to the diameter of the piston pin, which connects the piston to the connecting rod. The piston pin needs to be strong enough to withstand the forces transmitted between the piston and the connecting rod during the engine's operation. A larger piston pin diameter generally provides greater strength and durability. In the TVS110 engine, the 14 - unit piston pin diameter is chosen to handle the mechanical loads imposed on it. It ensures a reliable connection between the piston and the connecting rod, allowing for the smooth transfer of power from the piston's reciprocating motion to the rotational motion of the crankshaft. A well - sized piston pin also helps to reduce wear and tear on the piston and connecting rod, increasing the engine's lifespan.
PIN LENGTH: 38
The PIN LENGTH of 38 determines how the piston pin is positioned within the piston and the connecting rod. The length of the piston pin affects the distribution of forces and the overall stability of the connection. A proper pin length ensures that the load is evenly distributed across the piston and the connecting rod, preventing premature wear and failure. In the Piston:TVS110, the 38 - unit pin length is optimized to work in harmony with the other components of the engine. It provides a secure and stable connection, allowing the piston to move smoothly and transfer power efficiently, while also reducing the risk of mechanical failures due to uneven stress distribution.
Superior Features
High - Quality Material
The Piston:TVS110 is crafted from premium - grade materials. It is often made of high - silicon aluminum alloy, which is a popular choice in modern piston manufacturing. This material offers a remarkable combination of properties. Aluminum alloy, in general, has a low density, which means the piston is lightweight. A lighter piston reduces the inertial forces acting on the engine during operation. This, in turn, allows the engine to start more easily, accelerate more briskly, and operate more smoothly.
Moreover, high - silicon aluminum alloy has excellent heat - conducting properties. In an engine, the piston is exposed to extremely high temperatures during the combustion process. The good heat - conducting ability of the material enables the piston to quickly dissipate heat, maintaining a more stable operating temperature. This not only helps to prevent overheating of the piston but also improves the overall efficiency of the engine. It also reduces the risk of thermal expansion - related issues, ensuring a consistent fit within the cylinder over extended periods of use.
Precision Manufacturing Process
The manufacturing process of the Piston:TVS110 is a testament to precision engineering. It involves advanced casting techniques, such as high - pressure die - casting. This method allows for the creation of a piston with complex geometries while maintaining tight dimensional tolerances. The high - pressure die - casting process ensures that the material is evenly distributed within the mold, resulting in a piston with uniform density and strength.
After casting, the piston undergoes a series of meticulous machining operations. These include precision grinding, honing, and drilling to achieve the exact specifications of CYL DIA, TOTAL HIGH, COMP DIST, PIN DIA, and PIN LENGTH as mentioned before. Each machining step is carried out with the utmost care to ensure that the final product meets the highest quality standards. The precision - machined surfaces of the piston reduce friction with the cylinder wall, enhancing the engine's efficiency and reducing wear and tear. This not only extends the lifespan of the piston but also improves the overall reliability of the engine.
Advanced Piston Ring Design
The piston ring with dimensions 0.8*0.8*1.5 in the Piston:TVS110 is designed using advanced technology. It is made of a special alloy that offers a perfect balance between flexibility and strength. The flexibility of the ring allows it to conform closely to the cylinder wall, creating an effective seal. This seal is crucial for preventing the leakage of combustion gases from the combustion chamber into the crankcase. If gas leakage occurs, it can lead to a loss of engine power, reduced fuel efficiency, and increased emissions.
On the other hand, the strength of the piston ring ensures that it can withstand the high - pressure and high - temperature conditions within the engine. It also resists wear and tear during the piston's reciprocating motion. The unique cross - sectional dimensions of the ring are optimized to minimize friction while maintaining excellent sealing performance. This design feature contributes significantly to the engine's overall performance, as it reduces energy losses due to friction and ensures efficient combustion.

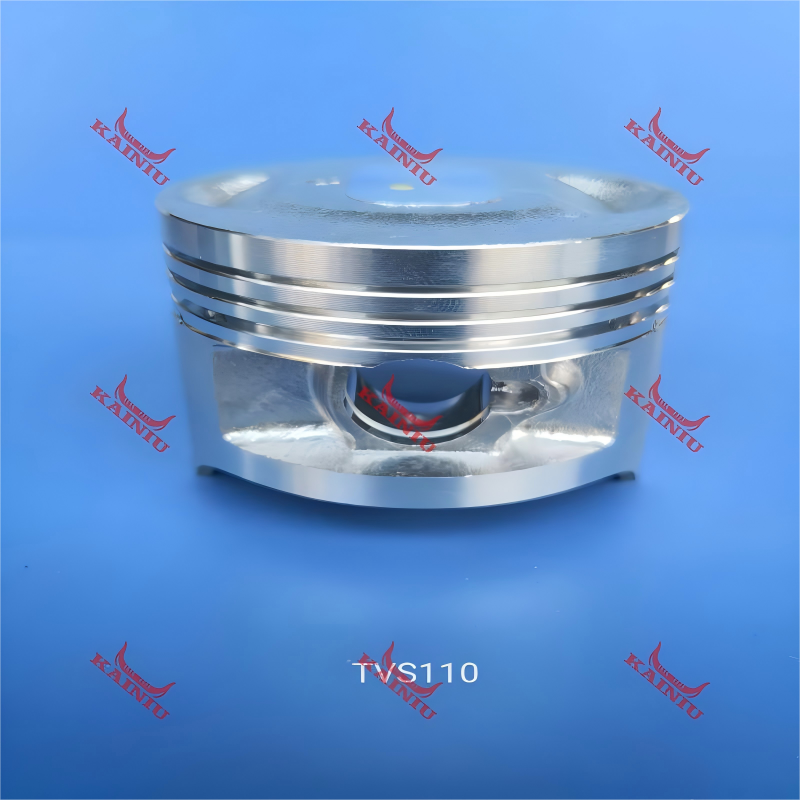

Piston MODEL TVS110
Product Detail
Model
TVS110
CYL DIA
53.5
TOTAL HIGH
42
COMP DIST
21
RING
0.8*0.8*1.5
PIN DIA
14
PIN LENGTH
38
